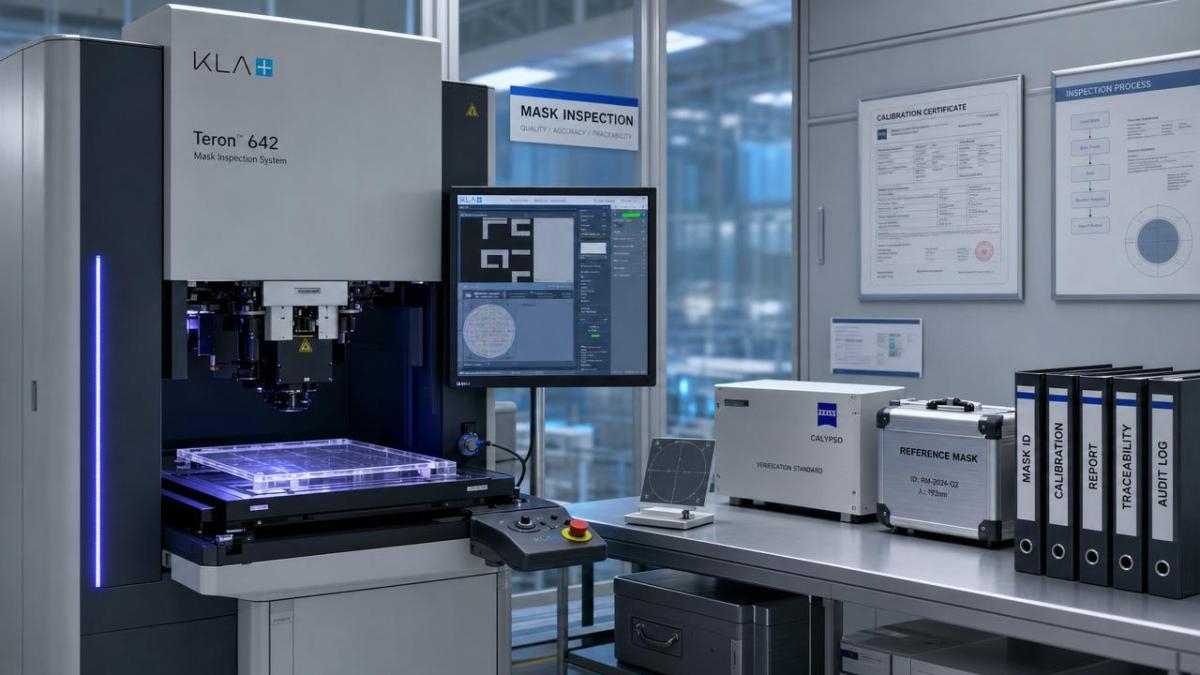

Mask Inspection System Factory Audit Checklist

Auditing a mask inspection system factory requires more than reviewing certificates—it demands a structured look at process control, equipment calibration, defect-detection accuracy, cleanroom discipline, and safety compliance. For quality control and safety managers, a reliable checklist helps identify production risks before they affect yield, regulatory approval, or supply-chain stability. This guide outlines the key audit points needed to evaluate whether a supplier can consistently deliver inspection systems that meet semiconductor-grade performance, traceability, and operational integrity requirements.

For semiconductor buyers, photomask shops, equipment integrators, and Tier-1 manufacturing partners, the audit outcome directly affects incoming quality control and long-term equipment reliability. A mask inspection system factory may present strong commercial claims, yet the real evidence is found in calibration logs, defect libraries, software validation records, cleanroom behavior, and corrective action discipline.

Audit Scope: What a Mask Inspection System Factory Must Prove

A factory audit should start with a clear scope covering at least 6 domains: quality management, process control, metrology, cleanroom operation, software governance, and safety compliance. Without a defined scope, auditors often over-focus on certificates and miss production-floor risks.

Define the System Boundary Before the Walkthrough

A mask inspection system factory may handle optics assembly, illumination modules, motion stages, image-processing software, final testing, or only selected subassemblies. The audit team should identify which processes are in-house, outsourced, or validated through incoming inspection.

For a practical audit, request a process map with 3 levels of detail: material flow, inspection checkpoints, and nonconformance handling. This helps quality control teams understand where defects can enter, escape, or be reworked.

Minimum Documents to Request

• Quality manual, organizational chart, and responsible persons for QA, EHS, calibration, and software release.
• Process flow chart covering optical alignment, motion control integration, electrical safety checks, and final acceptance testing.
• Calibration records for critical tools, typically reviewed for the latest 12 months or 2 calibration cycles.
• Defect classification criteria, test mask control records, and acceptance limits for detection repeatability.
• Corrective action reports for major nonconformities closed within the last 6–18 months.

The key is not document volume, but consistency between records and shop-floor practice. If procedures state daily verification but operators show weekly habits, the audit should flag a process-discipline gap.

Quality Management and Traceability Checklist

A qualified mask inspection system factory must demonstrate traceability from purchased components to final system shipment. This is especially important when optical modules, high-precision stages, cameras, controllers, and software versions are assembled into a single inspection platform.

Traceability From Supplier Lot to Final Acceptance

Auditors should sample at least 3 completed systems or work orders and trace them backward. The sample should include one recent shipment, one unit under production, and one unit with a recorded nonconformance if available.

The following checklist helps distinguish a controlled manufacturing environment from a supplier that relies on final inspection alone. Each item should be verified through records and physical observation.

The strongest evidence comes from closed-loop traceability. A buyer should be able to connect one final inspection result to component lots, calibration status, operator records, and software version within 30–60 minutes.

Supplier Qualification and Change Control

Change control is a frequent weakness in complex equipment manufacturing. A lens supplier change, camera firmware update, or motion controller substitution can alter detection performance even when the external system specification appears unchanged.

Ask whether critical suppliers are rated using at least 4 criteria: quality incidents, delivery stability, technical response time, and change-notification compliance. Review whether high-risk changes require engineering validation before production release.

Metrology, Calibration, and Defect-Detection Performance

The technical core of a mask inspection system factory audit is performance verification. Certificates may show compliance, but auditors need evidence that instruments, reference artifacts, algorithms, and acceptance criteria remain stable over time.

Calibration Discipline for Critical Equipment

Critical equipment normally includes optical alignment tools, interferometers, precision stages, environmental sensors, electrical safety testers, and reference masks. Calibration intervals may range from 3 months to 12 months depending on risk and usage intensity.

Auditors should check whether expired tools are automatically blocked from use. A robust system marks equipment status visibly and links each measurement record to a valid calibration certificate.

Performance Questions for Technical Review

1. What is the minimum defect size the system is designed to detect under the agreed recipe?
2. How many repeat runs are required before final acceptance, such as 3 consecutive stable scans?
3. How are nuisance defects, false positives, and false negatives classified and trended?
4. What reference mask or golden sample is used, and how often is it requalified?
5. How is environmental drift controlled during tests lasting 2–8 hours?

These questions are valuable because mask inspection performance depends on the interaction of optics, mechanics, electronics, software, and environment. A weak answer in any one area can compromise the entire platform.

Defect Library and Algorithm Validation

A mature factory maintains a controlled defect library that covers particles, scratches, pinholes, pattern distortion, contamination, and process-induced anomalies. The library should support repeatable testing rather than ad hoc image review.

For software validation, request evidence of test cases, version-controlled datasets, access permissions, and regression testing. When an algorithm is updated, the factory should compare results against previous versions before release.

Cleanroom, ESD, and Safety Compliance Review

A mask inspection system factory may not operate like a wafer fab, yet it still needs disciplined contamination control. Optical assemblies, precision stages, and sensitive electronics can be damaged by particles, electrostatic discharge, or unsafe handling.

Cleanroom Behavior and Environmental Monitoring

Review cleanroom classification, gowning practice, particle monitoring, temperature control, and humidity logs. Many precision assembly areas maintain temperature near 20–23°C and relative humidity around 40–60% to reduce drift and ESD risk.

The audit should observe at least 2 shift periods if possible. Clean behavior during a scheduled visit can differ from normal production habits, especially when rework, material movement, or urgent shipment pressure occurs.

Safety managers should connect environmental discipline with operator protection. Laser sources, high-voltage modules, moving stages, chemical cleaning agents, and heavy subassemblies all require visible controls and training evidence.

The table shows why cleanroom and safety checks should not be separated. A factory that controls contamination but ignores interlocks, chemical storage, or ESD discipline still creates unacceptable operational risk.

Training Records and Competency Checks

Training is effective only when linked to task competency. Review whether operators handling optical alignment, laser safety, ESD-sensitive boards, and final testing are requalified every 12 months or after major process changes.

Ask supervisors to explain how new technicians are released to independent work. A common best practice is a 3-step model: classroom instruction, supervised operation, and documented practical assessment.

Audit Execution: A 5-Step Factory Assessment Workflow

Quality and safety managers can improve audit consistency by using a standardized 5-step workflow. This reduces subjective scoring and helps procurement teams compare multiple mask inspection system factory candidates with the same criteria.

Step 1: Pre-Audit Risk Screening

Before the site visit, request the supplier profile, process scope, product history, customer complaint categories, and export-control awareness statement. The pre-audit review usually takes 3–5 working days for a complex equipment supplier.

Step 2: Document Review and Interview Plan

Build an interview list covering quality, engineering, production, calibration, EHS, software, and supply-chain teams. A balanced audit usually includes 6–10 interviews rather than relying only on one sales or quality representative.

Step 3: Production-Floor Verification

During the walkthrough, compare written procedures with live operations. Observe material identification, cleanroom conduct, tool status tags, rework segregation, workstation safety, and whether operators understand acceptance limits.

Step 4: Technical Performance Sampling

Select representative records from system-level testing, calibration, software validation, and defect-detection runs. If time permits, witness one verification test or review raw data, not only the final pass certificate.

Step 5: Scoring and Corrective Action Closure

Classify findings into critical, major, and minor categories. Critical findings may block approval; major findings typically require corrective action within 30 days; minor findings can be tracked over 60–90 days.

Suggested Scoring Logic

• Critical: direct risk to product safety, false acceptance, regulatory breach, or uncontrolled configuration change.
• Major: repeated process deviation, missing calibration evidence, incomplete traceability, or weak change control.
• Minor: isolated documentation gap with no immediate effect on shipped system quality.
• Opportunity: improvement suggestion for efficiency, data visualization, or preventive control.

A mask inspection system factory should be judged not only by the number of findings, but by its response quality. Strong suppliers provide root cause analysis, evidence-based containment, and measurable prevention actions.

Procurement Decisions, Risk Controls, and G-CST Support

For procurement and quality leaders, the audit result should translate into sourcing action. Approving a mask inspection system factory without risk grading can create later costs in installation delays, yield loss, engineering disputes, or safety incidents.

Common Procurement Mistakes to Avoid

One frequent mistake is treating the lowest quotation as the strongest option. For high-precision inspection equipment, lifecycle cost often depends on calibration stability, spare-part availability, software support, and corrective action speed.

Another mistake is accepting a general factory audit instead of a product-specific audit. A supplier may have a good management system but still lack the specialized controls required for semiconductor-grade mask inspection platforms.

Recommended Decision Criteria

• Technical readiness: proven calibration discipline, validated defect library, and stable final acceptance process.
• Operational reliability: controlled suppliers, documented rework, and measurable on-time corrective action closure.
• Safety maturity: laser, electrical, mechanical, chemical, and ESD controls verified through records and observation.
• Data integrity: traceable serial numbers, controlled software versions, and accessible raw test evidence.
• Service continuity: spare-parts plan, response window, remote diagnostic capability, and field support escalation path.

G-CST supports industrial buyers by translating audit evidence into technical benchmarking and supply-chain risk intelligence. This is useful when comparing equipment suppliers across semiconductor fabrication equipment, precision motion, digital systems, and advanced materials.

How to Use Audit Results After Supplier Approval

Approval should not be the end of oversight. Set a review cycle of 6–12 months for strategic suppliers, and require immediate notification for changes involving optics, algorithms, motion platforms, safety architecture, or critical subcontractors.

For high-risk projects, consider a staged release: prototype review, pilot build validation, first-article acceptance, and controlled production shipment. This 4-stage approach reduces the chance of discovering systemic issues after installation.

FAQ for Quality and Safety Managers

The following questions often appear during supplier qualification, especially when teams need to evaluate both technical performance and operational compliance within a limited audit window of 1–2 days.

How long should a mask inspection system factory audit take?

A focused audit may take 1 day for a mature supplier with narrow scope. For complex factories covering optics, software, motion control, and safety testing, 2–3 days is more realistic.

What finding should block supplier approval immediately?

Uncontrolled software release, expired calibration on critical measurement tools, falsified records, disabled safety interlocks, or inability to trace final test results to system configuration should be treated as critical.

Should auditors witness live defect-detection testing?

Yes, when schedule and confidentiality allow. Even a limited witnessed test can reveal operator skill, recipe control, environmental stability, and whether results match documented acceptance criteria.

How can buyers compare two technically similar suppliers?

Compare nonconformance closure quality, calibration overdue rate, software change governance, defect-library maturity, service response process, and transparency of raw data. These factors often separate stable partners from risky vendors.

From Checklist to Confident Supplier Qualification

A strong audit checklist turns supplier evaluation into a repeatable risk-control process. For a mask inspection system factory, the most important evidence includes traceable production records, valid calibration, repeatable defect detection, disciplined cleanroom practice, and verified safety controls.

Quality control and safety managers should treat the audit as a technical investigation, not a formality. The goal is to confirm whether the supplier can maintain semiconductor-grade performance through normal production pressure, engineering change, and long-term service demands.
